GPU

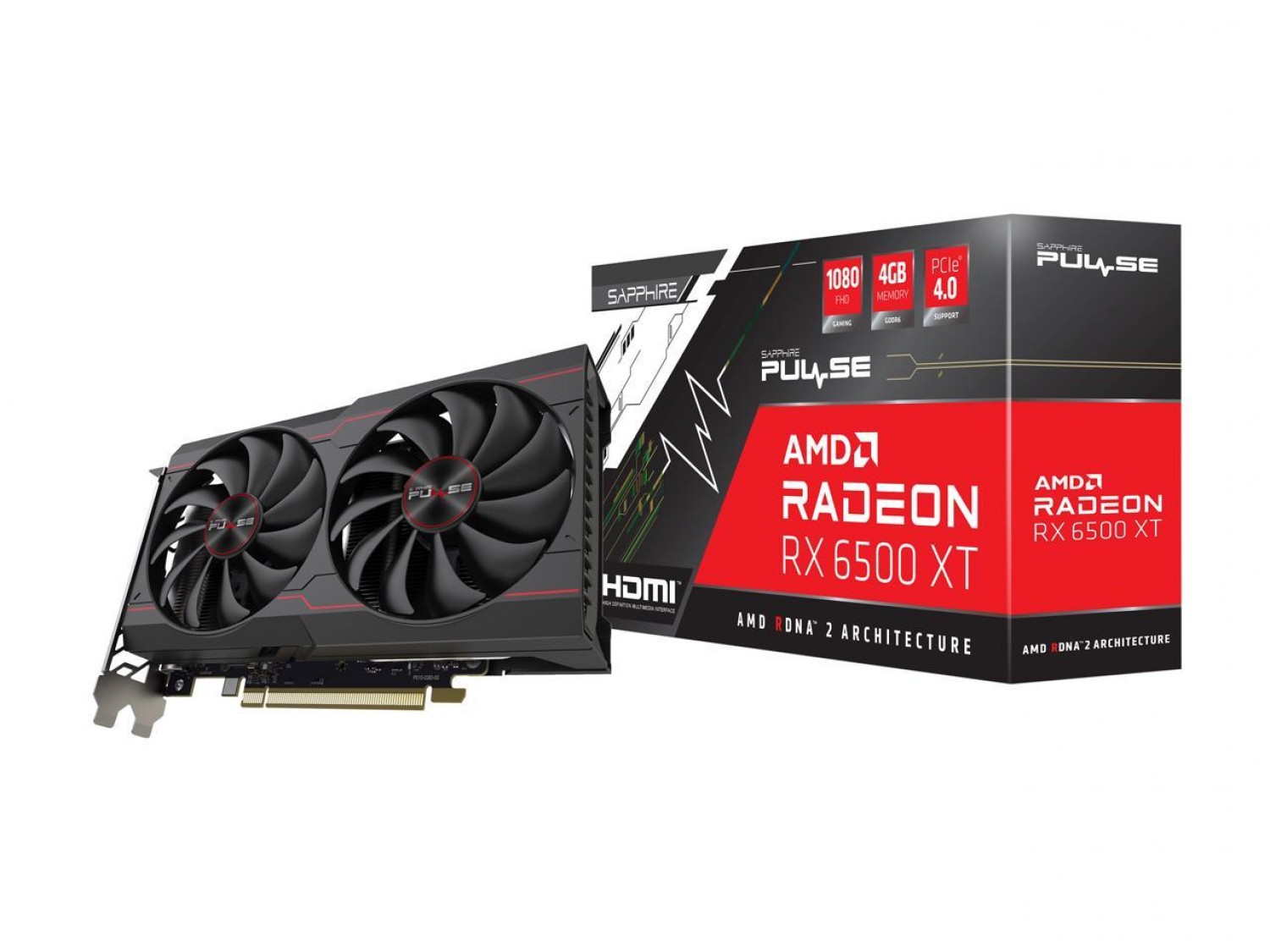

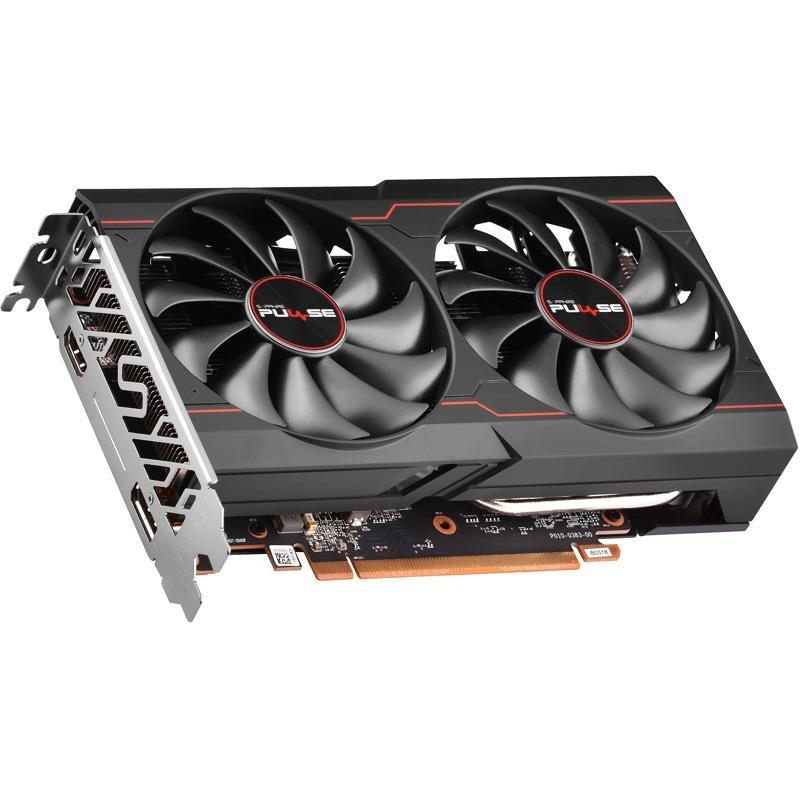

AMD Radeon� RX 6500 XT Graphics Card
6nm GPU
AMD RDNA� 2 Architecture
Engine Clock
Boost Clock: Up to 2825 MHz
Game Clock: Up to 2685 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability- frequency- and sustainabilty will vary based on several factors- including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications- set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
1024
Infinity Cache
16MB
Ray Accelerators
16
Memory Size/Bus
4GB GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 2 Displays
Resolution
HDMI�: 7680�4320
DisplayPort1.4: 7680�4320
Interface
PCI-Express 4.0
Output
1x HDMI
1x DisplayPort
BIOS Support
UEFI
Game Index
1080P
Sapphire Features
Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

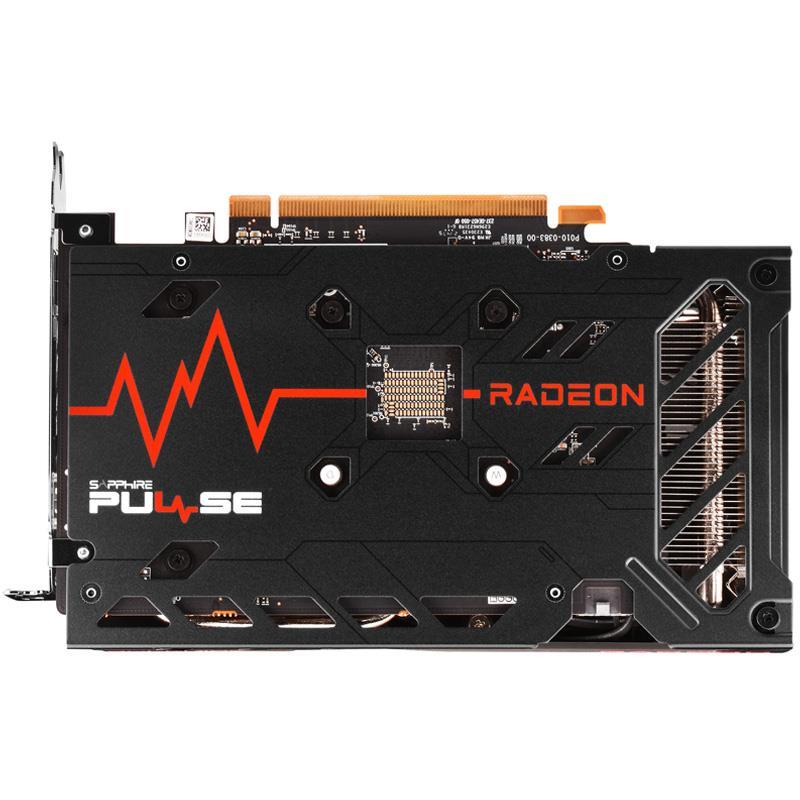

Metal Backplate
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate support
AMD Smart Access Memory
AMD Infinity Cache
6nm GPU
PCI Express 4.0 support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI support
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD FidelityFX
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Radeon Software
Game Driver Optimizations
Cooling
Dual Fans
Form Factor
2 slot- ATX
Power Consumption
130W (Board Power)
OS
Linux�- Windows� 7*- Windows� 10- and Windows 11 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 400 Watt Power Supply
1 x 6-pin Power Connector.
PCI Express� based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
